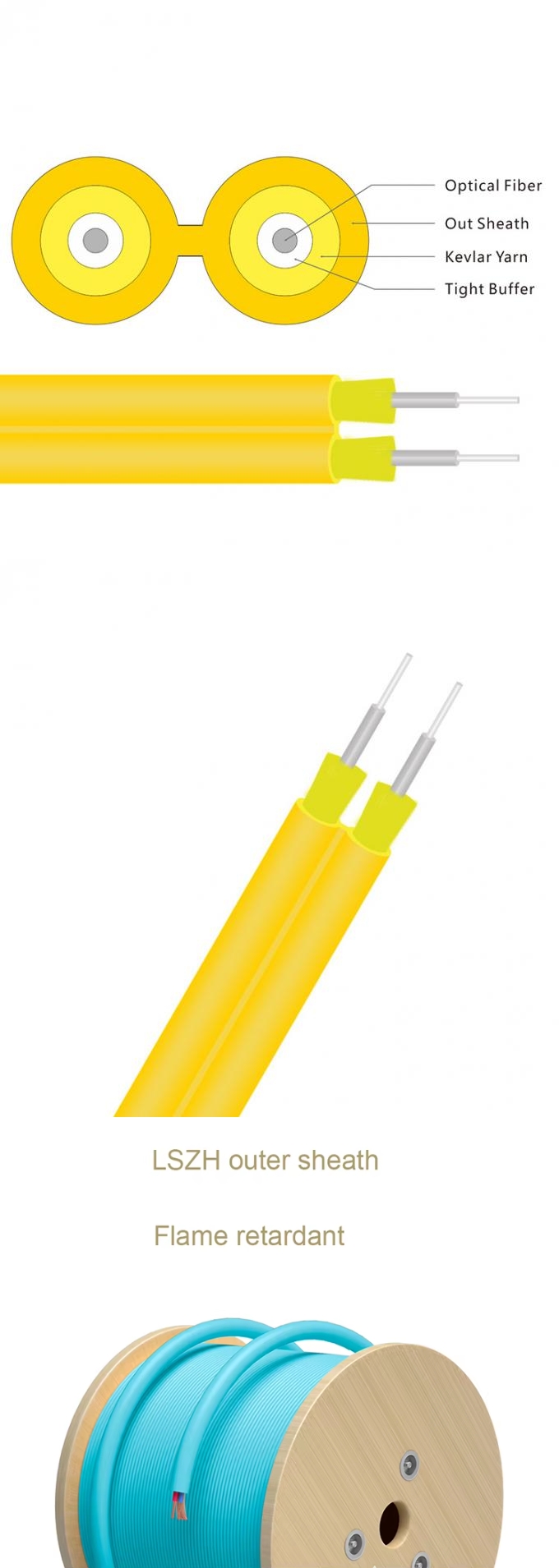

The zipcord interconnect cable uses two 900µm or 600µm tight buffered fibres as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.

Place of Origin	CHINA
Brand Name	OptixFiber
Certification	ISO9001,CE,FCC,ROHS
Model Number	GJFJV-2
Minimum Order Quantity	10KM
Packaging Details	1000M/Wood Roll，Size of Wood Roll：555560cm, Weight:42KG
Delivery Time	10-15days
Payment Terms	T/T, L/C, Western Union
Supply Ability	5000KM/month

Parameters

Place of Origin	CHINA
Brand Name	OptixFiber
Certification	ISO9001,CE,FCC,ROHS
Model Number	GJFJV-2
Minimum Order Quantity	10KM
Packaging Details	1000M/Wood Roll，Size of Wood Roll：555560cm, Weight:42KG
Delivery Time	10-15days
Payment Terms	T/T, L/C, Western Union
Supply Ability	5000KM/month

Product Detail

Product Name	Indoor Fiber Optic Cable	Fiber Type	OM1 OM2 OM3 OM4
Number Of Fiber	2	Cable Structure	Tight-buffered, Loose Tube
Cable Diameter	8.0x3.0	Bending Radius	10D/20D (mm)
Outer Jacket Materail	LSZH	Color	Light Green
Highlight	Multimode Indoor Fiber Optic Cable , Gjfbjv Indoor Fiber Optic Cable , gjfjv

Multimode Indoor Fiber Optic Cable 2 Core Gjfjv Gjfbjv Duplex For Patch Cord

Figure 8 Type Cable 2 Core Multimode Indoor Fiber Optic Cable Gjfjv Duplex For Patch Cord

Features

Excellent strippability with tight buffered fibre
Excellent flame retardant properties
Easy embranchment due to Figure 8 structural sheath
Excellent corrosion resistant, waterproof, flame retardant and environmental- friendly properties of the outer sheath

Fiber Parameters

CORE SIZE/ FIBER TYPE	ISO/ IEC	MAXIMUM ATTENUATION (DB/KM)			OVERFILL LAUNCH MIN. BANDWIDTH (MHZ•KM)		EMBc (MHZ•KM)	GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)		10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)
CORE SIZE/ FIBER TYPE	ISO/ IEC	850 NM	1300 NM	1550 NM	850 NM	1300 NM	EMBc (MHZ•KM)	850 NM	1300 NM	850 NM	1300 NM
62.5/125	OM1	3.5	1.2	N/A	200	600	N/A	300	550	32	—
50 /125	OM2	3.5	1.5	N/A	500	500	N/A	600	600	82	—
50 /125	OM2	3.0	1.2	N/A	700	500	950	800	550	150	—
50 /125	OM3	3.0	1.2	N/A	1500	500	2000	1000	550	300	—
50 /125	OM4	3.0	1.2	N/A	3500	550	4700	1040	550	550	—
G.657.A1 Single-mode	OS2	N/A	0.5	0.5	N/A	N/A	N/A	N/A	5000	N/A	10,000
SM	OS2	N/A	0.5	0.5	N/A	N/A	N/A	N/A	5,000	N/A	10,000

Cable Parameters

Items		Parameters
Fiber count		2
Tight-buffered Fiber	Diameter	850μm±50μm
Tight-buffered Fiber	Material	LSZH
Strength Member		Kevlar/Aramid yarn
Jacket	Diameter	8.0x3.0mm
	Material	LSZH/PVC
	Color	Light Green

FAQ

Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.fiber optik kablo
