Tight-Buffered Distribution Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members to stiffen the cable and prevent kinking.
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | GJFJV-12 |
| Minimum Order Quantity | 10KM |
| Packaging Details | 1000M/Wood Roll，Size of Wood Roll：55*55*60cm, Weight:42KG |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | GJFJV-12 |
| Minimum Order Quantity | 10KM |
| Packaging Details | 1000M/Wood Roll，Size of Wood Roll：55*55*60cm, Weight:42KG |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Product Name | GJFJV-SM-12F | Fiber Type | Single-Mode(Customize Multi-Mode) |
|---|---|---|---|
| Number Of Fiber | 12F(Support 24F/36F/48F/96F) | Cable Structure | Tight-buffered, Loose Tube, Armored |
| Cable Diameter | 6.2±0.1MM | Bending Radius | 10D/20D (mm) |
| Outer Jacket Materail | LSZH | Brand Name | AIXTON/OEM |
| Highlight | LSZH Indoor Fiber Optic Cable,OM2 Indoor Fiber Optic Cable,OM2 distribution fiber optic cable | ||
LSZH Indoor Fiber Optic Cable 12 Core For Horizontal Distribution
Multi Mode Fiber Optic Cable Distribution Single mode 12 Core GJFJV Indoor Fiber Optic cable

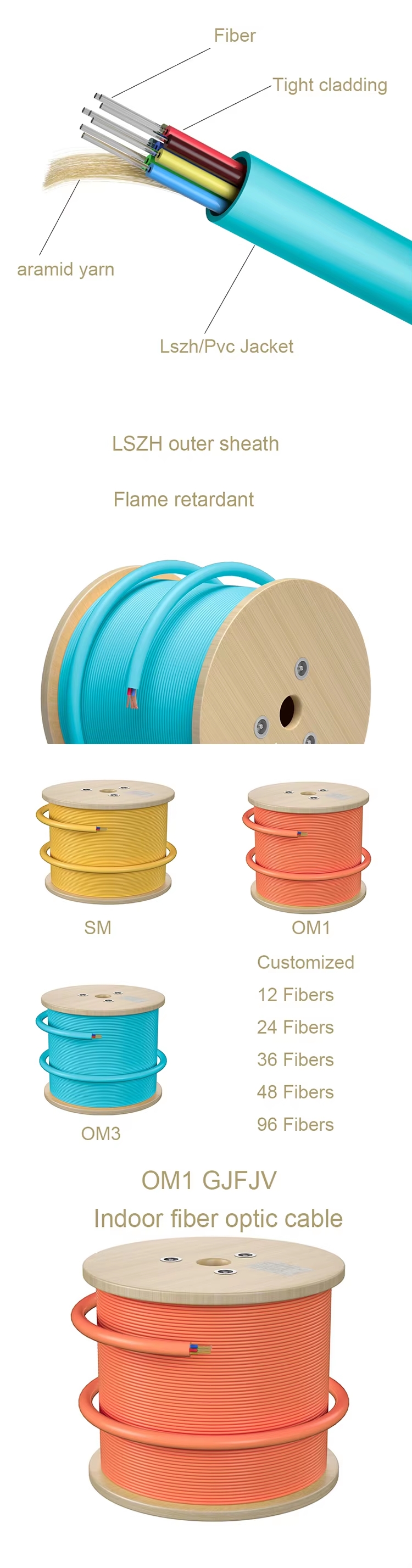

Tight-Buffered Distribution Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is Light weight, softness and easy to peel. It is widely used as pigtails and jumpers for communication equipments. Optronics breakout cables are constructed of up to 24, 2mm simplex cables stranded around a central strength member. Each simplex has its own aramid yarn strength member and jacket. These sub units are wrapped in a polyester tape and jacketed in LSZH.
Applications
Internal breakout cable for horizontal distribution
Features
1. Choice of fibre type
2. Individual high strength aramid yarn strength members for ease of handling
3. Easy to useLightweight and compact
4. LSZH jacket
Fiber Parameters
No. | Items | Unit | Specification | |
OM2 | ||||
1 | Mode Field Diameter | 850nm | um | 50±0.5 |
1300nm | um | 50±0.5 | ||
2 | Cladding Diameter | um | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | um | ≤0.5 | |
5 | Coating Diameter | um | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | um | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation(max.) | 850nm | dB/km | 3.5 |
1300nm | dB/km | 1.5 | ||
Cable Parameters
Items | Parameters | |
Fiber count | 12 | |
Tight-buffered Fiber | Diameter | 850μm±50μm |
Material | LSZH | |
Color | Blue Orange Green Brown Gray White Red Black Yellow Purple Pink Aqua | |
Strength Member | Kevlar | |
Jacket | Diameter | 6.2mm±0.2mm |
Material | LSZH/PVC | |
Color | Orange | |
Fiber colour
Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Purple | Pink | Aqua |
Mechanical and Environmental Characteristics
Items | Unite | Parameters |
Tension(Long Term) | N | 200 |
Tension (Short Term) | N | 660 |
Crush (Long Term) | N/10cm | 200 |
Crush (Short Term) | N/10cm | 1000 |
Min. Bend Radius (Dynamic) | mm | 20D |
Min. Bend Radius (Static) | mm | 10D |
Operating Temperature | ℃ | -20~+60 |
Storage Temperature | ℃ | -20~+60 |
Q1:What are the advantages of your price?
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
