Breakout cables combine multiple fiber flexibility with the strength of individually jacketed fibers. Breakout cables from can be terminated for fanout assemblies. Breakout cable is available in counts of 2-144 fibers.
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | Breakout Cable |
| Minimum Order Quantity | 10KM |
| Packaging Details | 1000M/Wood Roll，Size of Wood Roll：55*55*60cm, Weight:42KG |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | Breakout Cable |
| Minimum Order Quantity | 10KM |
| Packaging Details | 1000M/Wood Roll，Size of Wood Roll：55*55*60cm, Weight:42KG |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Product Name | Breakout Cable | Fiber Type | Sinlge Mode |
|---|---|---|---|
| Number Of Fiber | 144 | Cable Structure | Tight-buffered, Loose Tube |
| Cable Diameter | 10.0±0.5MM | Bending Radius | 10D/20D (mm) |
| Outer Jacket Materail | LSZH | Color | Light Yellow |
| Highlight | RFP Strength Optical Breakout Cable,144 Core Optical Breakout Cable,RFP Strength Distribution Cable | ||
RFP Strength Optical Breakout Cable Tight Buffer Distribution Cable 144 Core
Indoor Breakout Fiber Optic Cable RFP Strength Tight Buffer Distribution Cable 24 48 96 144 Core
Breakout cables combine multiple fiber flexibility with the strength of individually jacketed fibers. Breakout cables from can be terminated for fanout assemblies. Breakout cable is available in counts of 2-144 fibers.
Applications
• Rugged multi-fiber cross-connects
• Intrabuilding 'backbone'
• Fiber 'backbone' to communications closet
Features
• Sub-units printed every 6 inches
• Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE
• Compliant to Directive 2002/95/EC (RoHS)
• MSHA approved for mining applications
• Tight buffer and sub-unit jacket are available in a variety of colors
Fiber Parameters
CORE SIZE/ FIBER TYPE |
ISO/ IEC |
MAXIMUM ATTENUATION (DB/KM) | OVERFILL LAUNCH MIN. BANDWIDTH (MHZ•KM) |
EMBc (MHZ•KM) | GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) | 10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) | |||||
| 850 NM | 1300 NM | 1550 NM | 850 NM | 1300 NM | 850 NM | 1300 NM | 850 NM | 1300 NM | |||
| 62.5/125 | OM1 | 3.5 | 1.2 | N/A | 200 | 600 | N/A | 300 | 550 | 32 | — |
| 50 /125 | OM2 | 3.5 | 1.5 | N/A | 500 | 500 | N/A | 600 | 600 | 82 | — |
| 50 /125 | OM2 | 3.0 | 1.2 | N/A | 700 | 500 | 950 | 800 | 550 | 150 | — |
| 50 /125 | OM3 | 3.0 | 1.2 | N/A | 1500 | 500 | 2000 | 1000 | 550 | 300 | — |
| 50 /125 | OM4 | 3.0 | 1.2 | N/A | 3500 | 550 | 4700 | 1040 | 550 | 550 | — |
| G.657.A1 Single-mode | OS2 | N/A | 0.5 | 0.5 | N/A | N/A | N/A | N/A | 5000 | N/A | 10,000 |
| SM | OS2 | N/A | 0.5 | 0.5 | N/A | N/A | N/A | N/A | 5,000 | N/A | 10,000 |

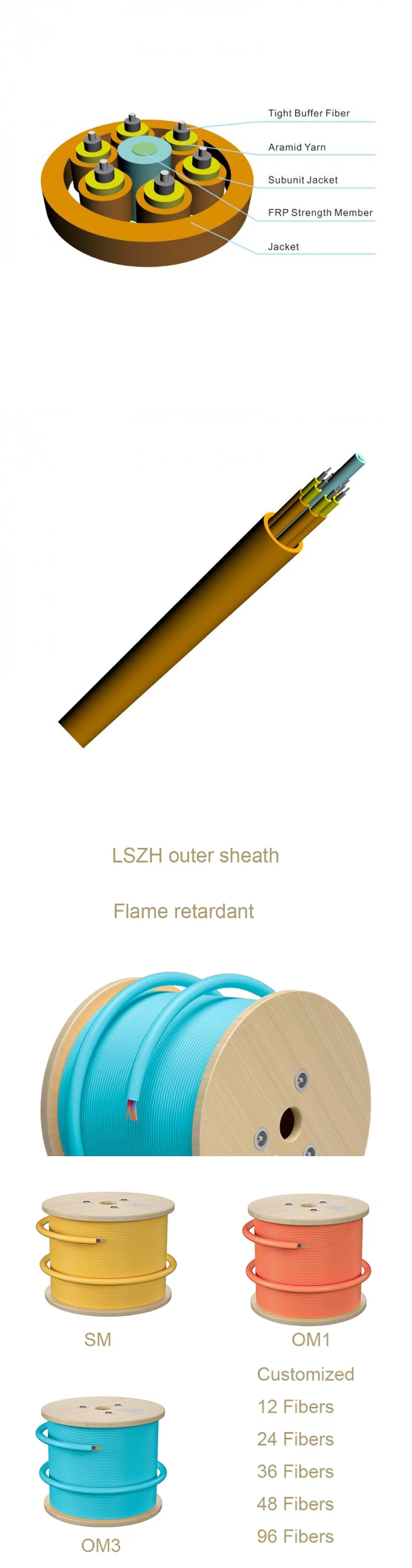

Cable Parameters
Items | Parameters | |
Fiber count | 144 | |
Tight-buffered Fiber | Diameter | 850μm±50μm |
Material | LSZH | |
Color | Blue Orange Green Brown Gray White Red Black Yellow Purple Pink Aqua | |
Strength Member | Kevlar | |
Jacket | Diameter | 10.0mm±0.5mm |
Material | LSZH/PVC | |
Color | Light Yellow | |
Fiber colour
Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Purple | Pink | Aqua |
Mechanical and Environmental Characteristics
CABLE TYPE |
FIBER COUNT | NOMINAL DIAMETER |
WEIGHT | TENSION | BENDING RADIUS | ||
| LBS (N) | INCHES (CM) | ||||||
| INCHES (MM) | LBS/1000FT (KG/KM) | INSTALLATION | LONG TERM | INSTALLATION | LONG TERM | ||
| Riser Breakout Cable | 4 | 0.33 (8.5) | 44 (65) | 150 (660) | 45 (198) | 5.1 (12.8) | 3.4 (8.5) |
| 6 | 0.40 (10.1) | 64 (95) | 150 (660) | 45 (198) | 6.0 (15.2) | 4.0 (10.1) | |
| 8 | 0.46 (11.6) | 84 (125) | 150 (660) | 45 (198) | 6.9 (17.4) | 4.6 (11.6) | |
| 12 | 0.58 (14.7) | 138 (205) | 150 (660) | 45 (198) | 8.7 (22.1) | 5.8 (14.7) | |
| 24 | 0.65 (16.6) | 118 (175) | 300 (1320) | 90 (396) | 11.4 (29.0) | 7.6 (19.3) | |
| Plenum Breakout Cable | 4 | 0.36 (9.0) | 57 (85) | 100 (440) | 30 (132) | 5.3 (13.5) | 3.6 (9.0) |
| 6 | 0.42 (10.6) | 79 (118) | 100 (440) | 30 (132) | 6.3 (15.9) | 4.2 (10.6) | |
| 8 | 0.48 (12.2) | 105 (156) | 100 (440) | 30 (132) | 7.2 (18.3) | 4.8 (12.2) | |
| 12 | 0.61 (15.5) | 169 (252) | 100 (440) | 30 (132) | 9.2 (23.2) | 6.1 (15.5) | |
Q1: What are the advantages of your price?
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
