1 Core GJFJV Blue Fiber Optic Cable Single Mode OM3 OM4 Patch Cord

Single-Fiber optical Cable for Indoor (GJFJV) uses one 900µm or 600µm tight buffered fibres as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.

    Place of OriginCHINA
    Brand NameOptixFiber
    CertificationISO9001,CE,FCC,ROHS
    Model NumberGJFJV-1
    Minimum Order Quantity10KM
    Packaging Details1000M/Wood Roll
    Delivery Time10-15days
    Payment TermsT/T, L/C, Western Union
    Supply Ability5000KM/month


  • Parameters
    Place of OriginCHINA
    Brand NameOptixFiber
    CertificationISO9001,CE,FCC,ROHS
    Model NumberGJFJV-1
    Minimum Order Quantity10KM
    Packaging Details1000M/Wood Roll
    Delivery Time10-15days
    Payment TermsT/T, L/C, Western Union
    Supply Ability5000KM/month


Product NameIndoor Fiber Optic CableFiber TypeMulti Mode
Number Of Fiber1Cable StructureTight-buffered, Loose Tube
Cable Diameter3.0x3.0Bending Radius10D/20D (mm)
Outer Jacket MaterailPVC/LSZHColorBlue
Highlight

GJFJV Blue Fiber Optic Cable

OM4 Blue Fiber Optic Cable

GJFJV OM3 OM4 Patch Cord



1 Core GJFJV Blue Fiber Optic Cable Single Mode OM3 OM4 Patch Cord



1 Core Cable Colorful Optical Fiber GJFJV Single Mode OM3 OM4 Patch Cord

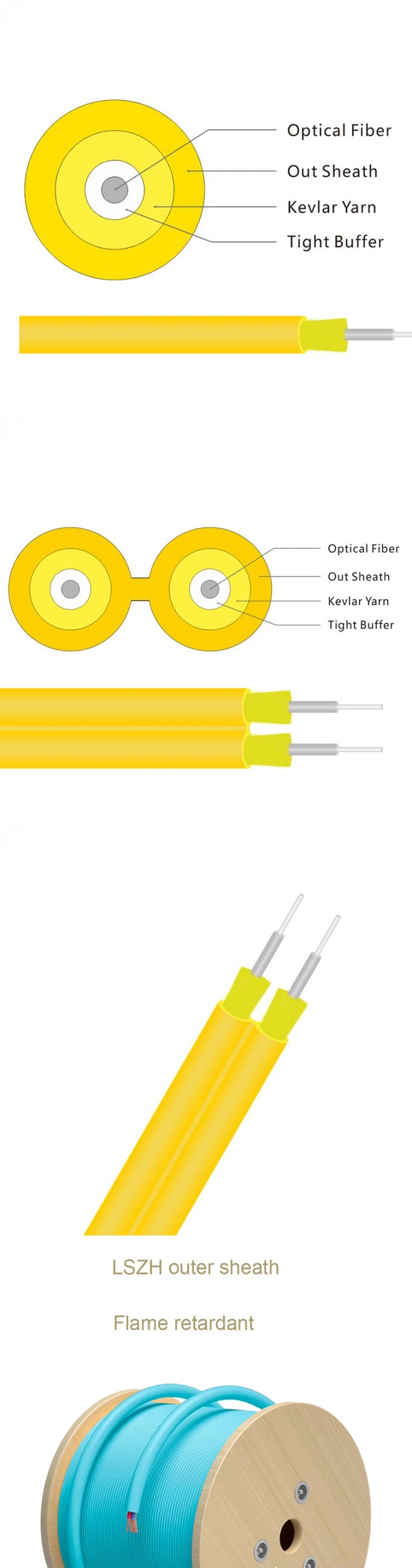

Single-Fiber optical Cable for Indoor (GJFJV) uses one 900µm or 600µm tight buffered fibres as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.


Features

  • Tight buffer fiber easy of stripping.
  • Tight buffer fiber have excellent flame-retardant performance.
  • Aramid yarn as strength member make cable have excellent tensile strength.
  • The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.


Fiber Parameters



CORE SIZE/ FIBER TYPE





ISO/ IEC



MAXIMUM ATTENUATION (DB/KM)

OVERFILL LAUNCH MIN.

BANDWIDTH (MHZ•KM)



EMBc (MHZ•KM)

GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)
850 NM1300 NM1550 NM850 NM1300 NM850 NM1300 NM850 NM1300 NM
62.5/125 OM13.51.2N/A200600N/A30055032
50 /125OM23.51.5N/A500500N/A60060082
50 /125OM23.01.2N/A700500950800550150
50 /125OM33.01.2N/A150050020001000550300
50 /125OM43.01.2N/A350055047001040550550
 G.657.A1 Single-modeOS2N/A0.50.5N/AN/AN/AN/A5000N/A10,000
 SMOS2N/A0.50.5N/AN/AN/AN/A5,000N/A10,000


Cable Parameters

Items

Parameters

Fiber count

1

Tight-buffered Fiber

Diameter

850μm±50μm

Material

LSZH

Strength Member

Kevlar/Aramid yarn

Jacket

Diameter

3.0x3.0mm

Material

LSZH/PVC

Color

Light Green




FAQ


Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.fiber optik kablo
