FTTH outdoor drop cable is constructed with two single mode fiber. The cable is protected by a dielectric strength member made of three steel wire and a LSZH outer jacket. Designed for outdoor installation the cable is well suited for connections between the dome closure and small dwelling unit / warehouse and independent villas.
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | FTTH-2 |
| Minimum Order Quantity | 100KM |
| Packaging Details | 1000M/Wood Roll，Size of Wood Roll：33*32*32cm, Weight:21KG |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | FTTH-2 |
| Minimum Order Quantity | 100KM |
| Packaging Details | 1000M/Wood Roll，Size of Wood Roll：33*32*32cm, Weight:21KG |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Product Name | Outdoor FTTH Drop Cable | Fiber Type | Single-Mode G657A1/G652D |
|---|---|---|---|
| Number Of Fiber | 2 | Construction | Self-supporting With FRP/Steel Messenger |
| Cable Diameter | (2.0±0.2)X(5.0±0.2)mm | Outer Jacket Materail | LSZH |
| Tensile Strength | 100/200N | Weight | 21KG |
| Highlight | LSZH FTTH Drop Cable,200N GJYXCH FTTH Drop Cable,GJYXCH Drop Cable | ||

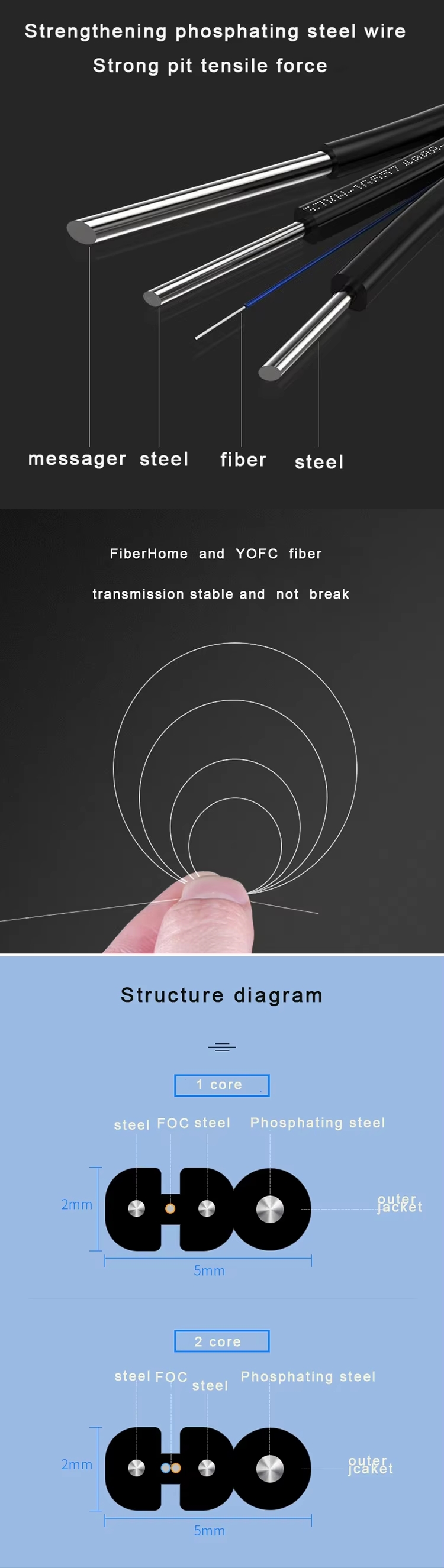

Structure
Structure | Unit | Parameter | |
Fiber count | Fibers | 2 | |
Diameter | mm | 5.0*2.0 | |
Weight | Kg/km | Approx.21 | |
Sheath color | Black | ||
Sheath material | LSZH | ||
O.D of steel wire | mm | 1.0±0.05mm | |
Strength member | mm | 0.5mm FRP | |
Tensile strength | N | 1500 | |
Crush Resistance | N | 2200 | |
Bending Radius | Dynamic | 30×Cable Diameter | |
Static | 15×Cable Diameter | ||
Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
Category | Description | Specifications | |
G.657A1 | |||
Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
@1383±3nm | ≤0.36dB/km | ||
@1550nm | ≤0.22dB/km | ||
Attenuation discontinuity | ≤0.05 dB | ||
Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
@1525~1575nm | ≤0.05 dB/km | ||
Zero Dispersion Wavelength | 1300~1324nm | ||
Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
Dispersion | @1310nm | ≤3.5 ps/nm.km | |
@1550nm | ≤18 ps/nm.km | ||
Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
Effective Group Index of Refraction | @1310nm | 1.4675 | |
@1550nm | 1.4681 | ||
Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
Geometric Specifications | Mode Field Diameter | @1310nm | 9.2±0.6μm |
@1550nm | 10.4±0.8μm | ||
Cladding Diameter | 125±1μm | ||
Cladding Non-Circularity | ≤1.0% | ||
Coating Diameter | 245±7μm | ||
Coating/Cladding Concentricity Error | ≤8μm | ||
Core/Cladding Concentricity Error | ≤0.8μm | ||
Mechanical Specifications | Proof Test level | ≥1.0% | |
Fiber Curl Radius | ≥4.0m | ||
Peak Coating Strip Force | 1.3~8.9N | ||
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.fibra óptica
