Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users.

Place of Origin	CHINA
Brand Name	OptixFiber
Certification	ISO9001,CE,FCC,ROHS
Model Number	FTTH-4-In
Minimum Order Quantity	100KM
Packaging Details	1000M/Wood Roll
Delivery Time	10-15days
Payment Terms	T/T, L/C, Western Union
Supply Ability	5000KM/month

Parameters

Place of Origin	CHINA
Brand Name	OptixFiber
Certification	ISO9001,CE,FCC,ROHS
Model Number	FTTH-4-In
Minimum Order Quantity	100KM
Packaging Details	1000M/Wood Roll
Delivery Time	10-15days
Payment Terms	T/T, L/C, Western Union
Supply Ability	5000KM/month

Product Detail

Item	Indoor 4core Drop Cable	Fiber Type	Single Mode G652D
Number Of Fiber	4	Construction	Steel wire/ FRP
Bending Radius	10D/20D (mm)	Outer Jacket Materail	LSZH
Sample	Free	Package	Wooden Drum
Highlight	G652D FTTH Drop Fiber Optic Cable , 0.5mm Drop Fiber Optic Cable , G652D FTTH Fiber Optic Cable

G652D FTTH Drop Fiber Optic Cable With Messenger Telecommunication Cable

FTTH G652D 1 2 4 core with Messenger Telecommunication Cable Fiber Drop Cable Indoor

Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it's very suitable for indoor cabling, end users directly cabling, and access network.

W

i

t

h

s

i

m

p

l

e

i

n

s

t

a

l

l

a

t

i

o

n

,

F

T

T

H

i

n

d

o

o

r

c

a

b

l

e

s

c

a

n

b

e

d

i

r

e

c

t

l

y

c

o

n

n

e

c

t

e

d

t

o

t

h

e

h

o

m

e

s

.

T

h

e

y

a

r

e

s

u

i

t

a

b

l

e

f

o

r

c

o

n

n

e

c

t

i

n

g

c

o

m

m

u

n

i

c

a

t

i

o

n

e

q

u

i

p

m

e

n

t

s

,

a

n

d

u

s

e

d

a

s

a

c

c

e

s

s

b

u

i

l

d

i

n

g

c

a

b

l

e

s

i

n

p

r

e

m

i

s

e

d

i

s

t

r

i

b

u

t

i

o

n

s

y

s

t

e

m

.

Feature and Application
1. Softandflexible,goodbendingperformance
2. Easytoinstallation,handlingandmaintenance
3. Goodwaterproofandflameretardantperformance
4. Specially used in the FTTH projects-indoor installations

Delivery LengthNote: Then bending radius is only applicable to the ordinary Bow-Type drop cable without suspension wire part.

Standard Reel Length :1000m/roll and 2000m/roll; Other length available on request.

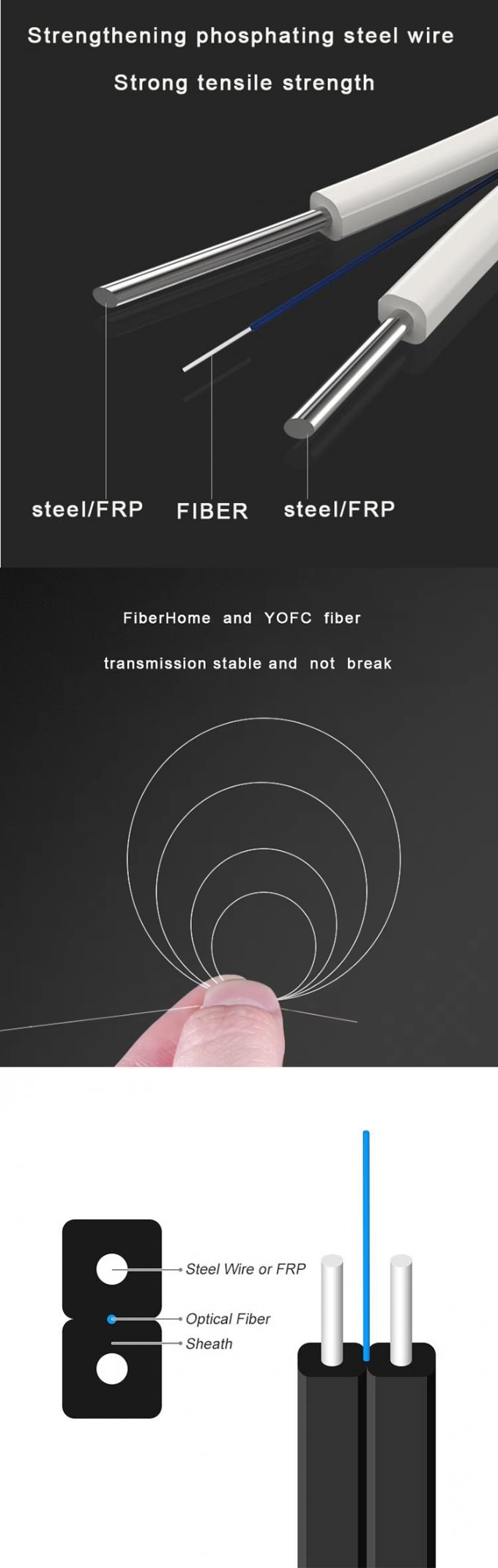

Structure

Structure		Unit	Parameter
Fiber count		Fibers	2
Diameter		mm	4.0*2.0
Weight		Kg/km	Approx.17.7
Sheath color			Black
Sheath material			LSZH
O.D of steel wire		mm	1.0±0.05mm
Strength member		mm	0.5mm FRP
Tensile strength		N	1500
Crush Resistance		N	2200
Bending Radius	Dynamic		30×Cable Diameter
	Static		15×Cable Diameter
Operating Temperature		℃	-40 --- +70

Test Datasheet

Category	Description		Specifications
			G.657A1
Optical Specifications	Attenuation	@1310-1625nm	≤0.36dB/km
		@1383±3nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius ,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N

FAQ

Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.

Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.оптоволоконний кабель
