Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network users to introduce the section of the optical cable.
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | FTTH-F8 |
| Minimum Order Quantity | 100KM |
| Packaging Details | 1000M/Wood Roll，Size of Wood Roll：33*32*32cm, Weight:21KG |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | FTTH-F8 |
| Minimum Order Quantity | 100KM |
| Packaging Details | 1000M/Wood Roll，Size of Wood Roll：33*32*32cm, Weight:21KG |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Product | Figure 8 FTTH DROP CABLE | Application | FTTH |
|---|---|---|---|
| Messenger | Stranded Steel Wires | Fiber | G652D Or G657A |
| Self-Supporting Strength Member | 3 Steel Wire | Package | Wooden Drum |
| Weight | 32kg | ||
| Highlight | G657A FTTH Drop Cable,G652D FTTH Drop Cable,G652D self supporting fiber optic cable | ||
Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network users to introduce the section of the optical cable.The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no harmful components, in general,it is a highly recommended FTTH drop cables for use in the fiber to the home projects.
Features
Adopt fiber with small bending radius (G.657),
offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius,
offering good bending resistance;
Easy cable stripping without need of tools, easy cable fixation
and low cost of installation.
Application
As FTTH cable,for indoor horizontal and vertical cabling;
Indoor cabling under carpet and along corner.
Outdoor cable suitable as cable extending from outdoor (as aerial cable) to indoor；
| Physical | Fiber account | 1 G.657A2 |
| Cable OD | ≤ 2.0*5.0mm | |
| Cable weight | ≤ 20kg/km | |
| Operation temperature range | -20 deg C to + 60 deg C | |
| Installation temperature range | -5 deg C to + 50 deg C | |
| Transport and storage temperature range | -20 deg C to + 60 deg C | |
| Mechanical | Max. tensile load | Short term:600N; Long term:300N |
| Crush resistance | Short term:2200 N/10cm; Long term: 1000 N/10cm | |
| Minimal installation bending radius | 20 x OD | |
| Minimal operation bending radius | 10 x OD | |
| Fiber Color | Blue | |

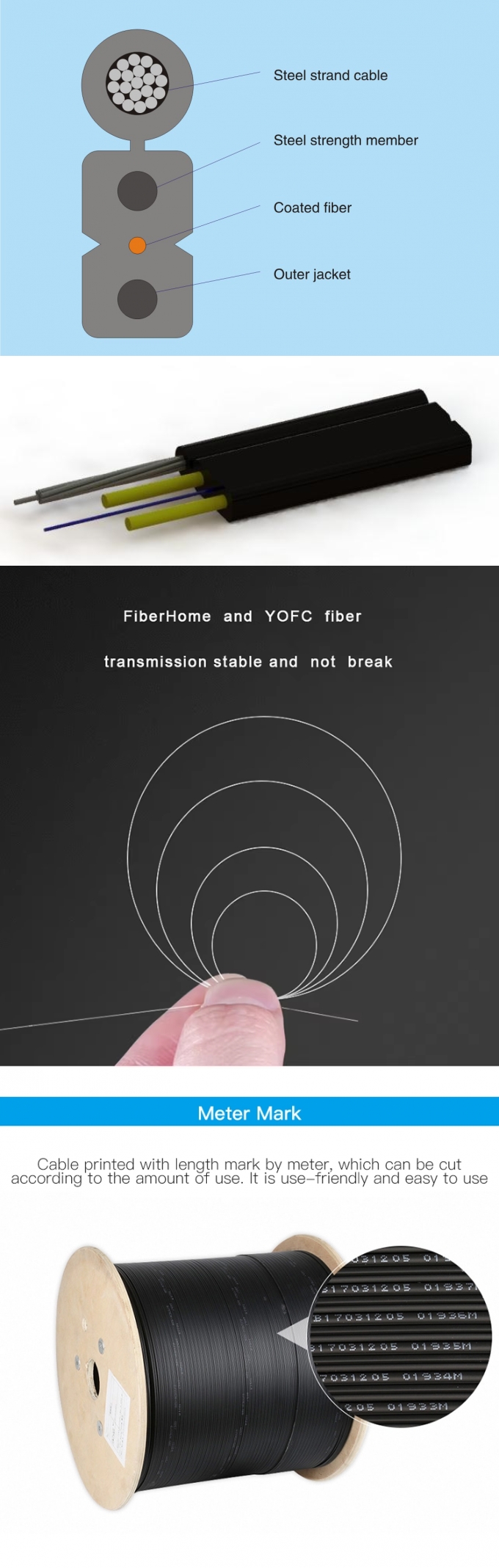

Structure
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.оптоволоконний кабель
