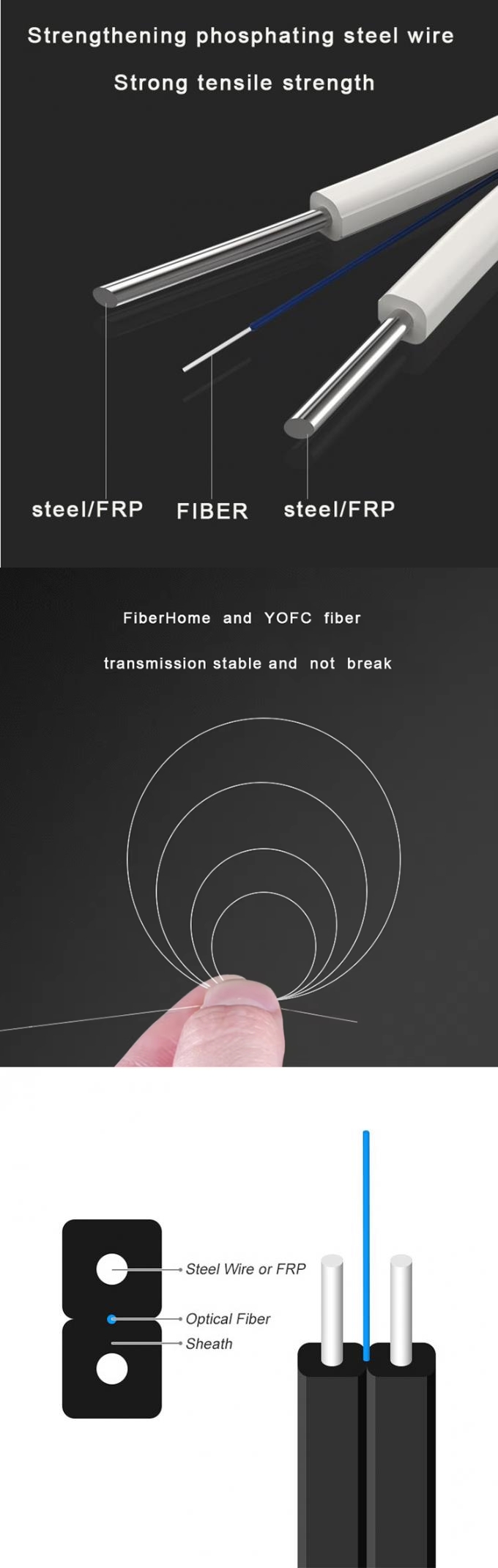

The optical fiber unit is positioned in the center Two parallel steel are placed at the two sides.A steel wires as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.The cable is widely use in FTTH project.
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | FTTH-1-In |
| Minimum Order Quantity | 100KM |
| Packaging Details | 1000M/Wood Roll |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | FTTH-1-In |
| Minimum Order Quantity | 100KM |
| Packaging Details | 1000M/Wood Roll |
| Delivery Time | 10-15days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000KM/month |
| Model NO | GJYXCH | Core | Single-Mode G657A1 |
|---|---|---|---|
| Sheath Material | LSZH | Cable Size | 4.0*2.0 |
| Messenger Size | 1.0mm/1.1mm/1.2mm | HS Code | 85447000 |
| Length | 1000m/2000m Per Drum | Printing | Can Be Customized |
| Highlight | G657A1 FTTH Flat Drop Cable,G657A1 Metallic Flat Drop Cable,1.2mm Gjyxch Drop Cable | ||
FTTH Flat Drop Cable Metallic FRP Gjyxch Single Mode Sm G657A1 A2 G652D
FTTH Drop Flat Cable Metallic FRP Gjyxch Single Mode Sm G657A1 A2 G652D Optica Fiber Cable 1 2 4core
Structure
Structure | Unit | Parameter | |
Fiber count | Fibers | 2 | |
Diameter | mm | 4.0*2.0 | |
Weight | Kg/km | Approx.17.7 | |
Sheath color | Black | ||
Sheath material | LSZH | ||
O.D of steel wire | mm | 1.0±0.05mm | |
Strength member | mm | 0.5mm FRP | |
Tensile strength | N | 1500 | |
Crush Resistance | N | 2200 | |
Bending Radius | Dynamic | 30×Cable Diameter | |
Static | 15×Cable Diameter | ||
Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
Category | Description | Specifications | |
G.657A1 | |||
Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
@1383±3nm | ≤0.36dB/km | ||
@1550nm | ≤0.22dB/km | ||
Attenuation discontinuity | ≤0.05 dB | ||
Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
@1525~1575nm | ≤0.05 dB/km | ||
Zero Dispersion Wavelength | 1300~1324nm | ||
Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
Dispersion | @1310nm | ≤3.5 ps/nm.km | |
@1550nm | ≤18 ps/nm.km | ||
Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
Effective Group Index of Refraction | @1310nm | 1.4675 | |
@1550nm | 1.4681 | ||
Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
Geometric Specifications | Mode Field Diameter | @1310nm | 9.2±0.6μm |
@1550nm | 10.4±0.8μm | ||
Cladding Diameter | 125±1μm | ||
Cladding Non-Circularity | ≤1.0% | ||
Coating Diameter | 245±7μm | ||
Coating/Cladding Concentricity Error | ≤8μm | ||
Core/Cladding Concentricity Error | ≤0.8μm | ||
Mechanical Specifications | Proof Test level | ≥1.0% | |
Fiber Curl Radius | ≥4.0m | ||
Peak Coating Strip Force | 1.3~8.9N | ||
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.สายไฟเบอร์ออปติก
