| Item NO. | GJYXCH | Core Numbers | 4cores |
|---|---|---|---|
| Certification | ROHS,Anatel | Mode Type | Single Mode |
| Self-Supporting Strength Member | 2FRP+1steel Wire | Applications | Horizontal Cabling |
| Sample Status | In Stock | ||
| Highlight | Single Mode FTTH Drop Cable,LSZH G657A1 FTTH Drop Cable,G657A1 Zero Halogen FTTH Cable | ||

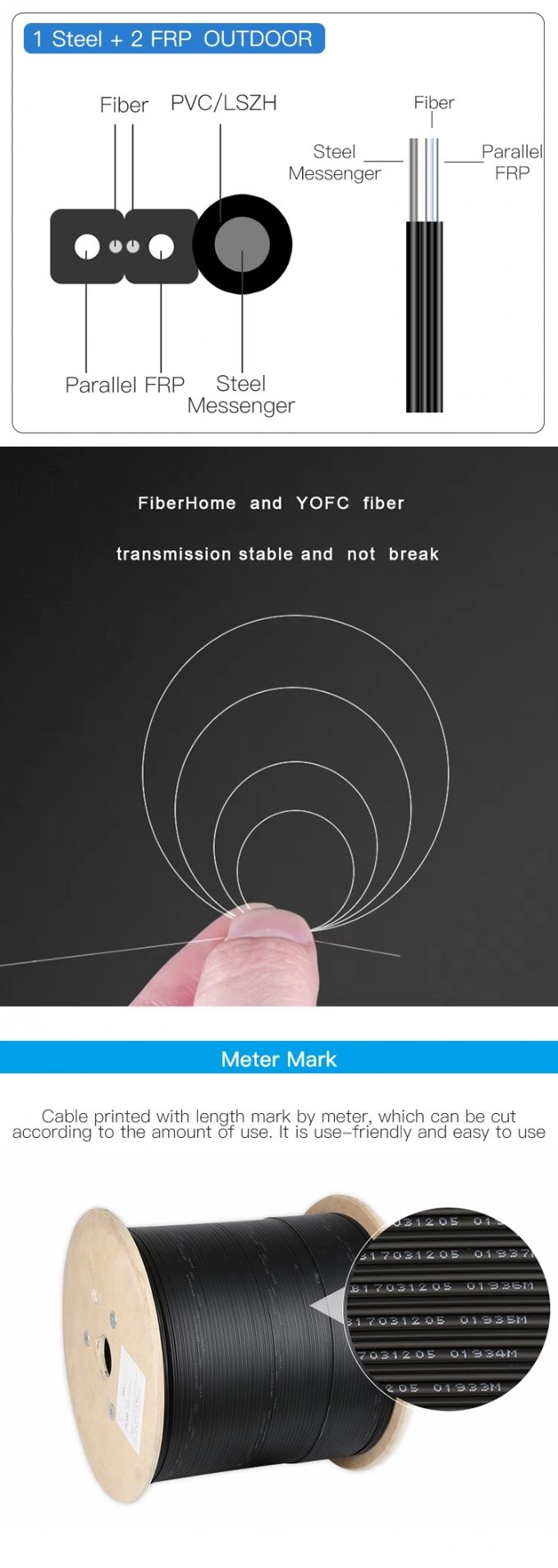

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
Optical Characteristics
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Simple structure, light weight and high practicability;
3. Novel flute design, easily strip and splice, simplify the installation and maintenance;
4. Low smoke, zero halogen and flame retardant sheath.
Application
Used as access building cable
Used in indoor cabling especially used for FTTH
Structure
Structure | Unit | Parameter | |
Fiber count | Fibers | 2 | |
Diameter | mm | 5.0*2.0 | |
Weight | Kg/km | Approx.21 | |
Sheath color | Black | ||
Sheath material | LSZH | ||
O.D of steel wire | mm | 1.0±0.05mm | |
Strength member | mm | 0.5mm FRP | |
Tensile strength | N | 1500 | |
Crush Resistance | N | 2200 | |
Bending Radius | Dynamic | 30×Cable Diameter | |
Static | 15×Cable Diameter | ||
Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
Category | Description | Specifications | |
G.657A1 | |||
Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
@1383±3nm | ≤0.36dB/km | ||
@1550nm | ≤0.22dB/km | ||
Attenuation discontinuity | ≤0.05 dB | ||
Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
@1525~1575nm | ≤0.05 dB/km | ||
Zero Dispersion Wavelength | 1300~1324nm | ||
Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
Dispersion | @1310nm | ≤3.5 ps/nm.km | |
@1550nm | ≤18 ps/nm.km | ||
Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
Effective Group Index of Refraction | @1310nm | 1.4675 | |
@1550nm | 1.4681 | ||
Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
Geometric Specifications | Mode Field Diameter | @1310nm | 9.2±0.6μm |
@1550nm | 10.4±0.8μm | ||
Cladding Diameter | 125±1μm | ||
Cladding Non-Circularity | ≤1.0% | ||
Coating Diameter | 245±7μm | ||
Coating/Cladding Concentricity Error | ≤8μm | ||
Core/Cladding Concentricity Error | ≤0.8μm | ||
Mechanical Specifications | Proof Test level | ≥1.0% | |
Fiber Curl Radius | ≥4.0m | ||
Peak Coating Strip Force | 1.3~8.9N | ||
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.fibra óptic
