Indoor Fiber Optic Cable

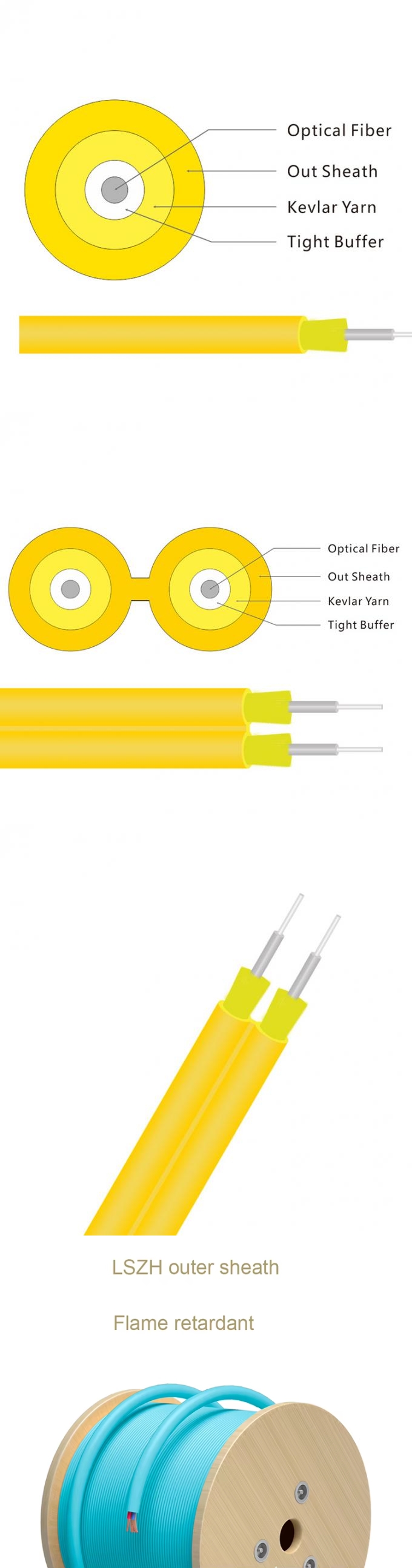

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

    Place of OriginCHINA
    Brand NameOptixFiber
    CertificationISO9001,CE,FCC,ROHS
    Model NumberGJFJV
    Minimum Order Quantity10KM
    Packaging Details1000M/Wood Roll
    Delivery Time15days
    Payment TermsT/T, L/C, Western Union
    Supply Ability2000KM/month


  • Parameters
    Place of OriginCHINA
    Brand NameOptixFiber
    CertificationISO9001,CE,FCC,ROHS
    Model NumberGJFJV
    Minimum Order Quantity10KM
    Packaging Details1000M/Wood Roll
    Delivery Time15days
    Payment TermsT/T, L/C, Western Union
    Supply Ability2000KM/month


Product NameINdoor GJFJV CableFiber TypeG657a
Number Of Fiber1CORECable StructureTight-buffered
Cable Diameter3.0MMBending Radius10D/20D (mm)
Outer Jacket MaterailLSZHColorLight Yellow
Highlight

3mm Simplex Indoor Fiber Optic Cable

G652D Indoor Fiber Optic Cable

G652D simplex fiber optic cable



G652D 3mm Simplex Indoor Fiber Optic Cable Single Mode GJFJV



G652D Single Mode 1 Fiber 3mm Simplex Indoor Fiber Optic Cable GJFJV



GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.


Features:

  • Tight buffer fiber ease of stripping;
  • Tight buffer fiber have excellent flame-retardant performance;
  • Aramid yarn as strength member make cable have excellent tensile strengh;
  • The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc;

Applications:

  • Optical fiber jumper or pigtail;
  • Indoor riser level and plenum level cable distribution;
  • Interconnect between instruments, communication equipments;





Fiber Parameters



CORE SIZE/ FIBER TYPE





ISO/ IEC



MAXIMUM ATTENUATION (DB/KM)

OVERFILL LAUNCH MIN.

BANDWIDTH (MHZ•KM)



EMBc (MHZ•KM)

GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS)
850 NM1300 NM1550 NM850 NM1300 NM850 NM1300 NM850 NM1300 NM
62.5/125 OM13.51.2N/A200600N/A30055032
50 /125OM23.51.5N/A500500N/A60060082
50 /125OM23.01.2N/A700500950800550150
50 /125OM33.01.2N/A150050020001000550300
50 /125OM43.01.2N/A350055047001040550550
 G.657.A1 Single-modeOS2N/A0.50.5N/AN/AN/AN/A5000N/A10,000
 SMOS2N/A0.50.5N/AN/AN/AN/A5,000N/A10,000


Cable Parameters

Items

Parameters

Fiber count

1

Tight-buffered Fiber

Diameter

850μm±50μm

Material

LSZH

Strength Member

Kevlar/Aramid yarn

Jacket

Diameter

3.0x3.0mm

Material

LSZH/PVC

Color

Light Green



FAQ



Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.fiber optik kablo
