Single Mode GYTC8S GYXTC8S Outdoor Fiber Optic Cable Figure 8 Aerial Fiber Cable Armored Single Mode G.625d GYTC8S Outdoor fiber optic cable Figure 8 Aerial fiber cable
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | GYXTC8S-24 |
| Minimum Order Quantity | 10KM |
| Packaging Details | 2KM per wooden drums, Weight:125KG, Drum Size:75*75*60CM |
| Delivery Time | 15-20days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000km every month |
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | GYXTC8S-24 |
| Minimum Order Quantity | 10KM |
| Packaging Details | 2KM per wooden drums, Weight:125KG, Drum Size:75*75*60CM |
| Delivery Time | 15-20days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000km every month |
| Product Name | GYXTC8S Fiber Optic Cable | Fiber Count | 2 Core To 144cores |
|---|---|---|---|
| Fiber Type | Singlemode 9/125 | Overall Diameter | 11.4mm~13.10mm |
| Outer Jacket | PE | Sample Status | In Stock |
| Length | 1-5km Per Wooden Drum | Cable Color | Black |
| Highlight | GYTC8S Outdoor Fiber Optic Cable,11.4mm Outdoor Fiber Optic Cable,GYTC8S figure 8 fiber optic cable | ||

Single Mode GYTC8S GYXTC8S Outdoor Fiber Optic Cable Figure 8 Aerial Fiber Cable
Armored Single Mode G.625d GYTC8S Outdoor fiber optic cable Figure 8 Aerial fiber cable
GYTC8S cable, singlemode/multimode fibers are positioned in the loose tubes, while the loose tubestrand together around metallic central strength member into a compact and circular cable core,and the water blocking materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
Specification:
Item Name:Fiber optical cable GYTC8S.
Optical Mode:Singlemode/Multimode.
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.
Total Fiber Count:2-144.
Bend Radius(Static/Dynamic):10D/20D.
Working Life:More than 25 years.
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

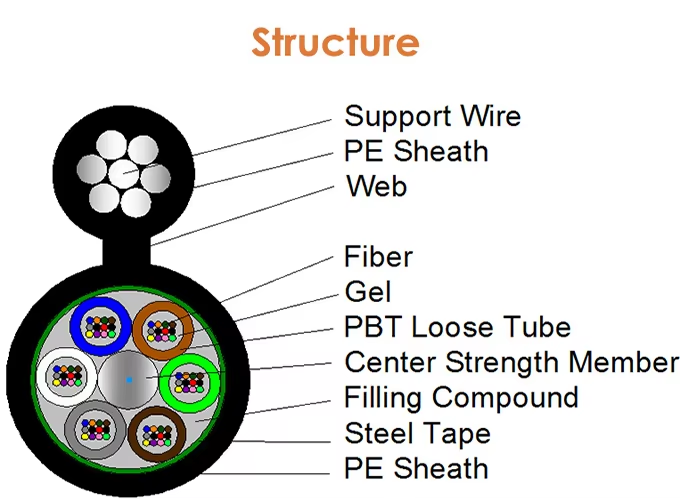

Structure:
Figure 8 non armoured fiber cable consists of :
1. Stranded loose tube
2. Steel wire strength member
3. Core filler compound
4. Fillers
5. Phosphating or Galvanized steel wire
6. PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
| Fiber count | 2 core-144core |
| Fiber Type: | G652D/G657A1/G657A2 |
| Crush Resistance Long term: | 300 (N/100MM) |
| Crush Resistance Short term: | 1000(N/100MM) |
| Overall Diameter | 11.4mm~13.10mm |
| Sheath | PE |
| Strand Steel wire | 7*0.8mm |
Sample Status | In stock |
