Mini-ADSS are Small All-Dielectric self supporting cable and single jacket designed for aerial installation. The optical fiber cable(Mini-ADSS) design provides no supporting part or messenger wire required.
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | ASU |
| Minimum Order Quantity | 10KM |
| Packaging Details | 2/3/4KM Per Wooden Drum, |
| Delivery Time | 15-20days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000km every month |
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | ASU |
| Minimum Order Quantity | 10KM |
| Packaging Details | 2/3/4KM Per Wooden Drum, |
| Delivery Time | 15-20days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000km every month |
| Product Name | MINI ADSS Fiber Optic Cable | Fiber Count | 24 cores |
|---|---|---|---|

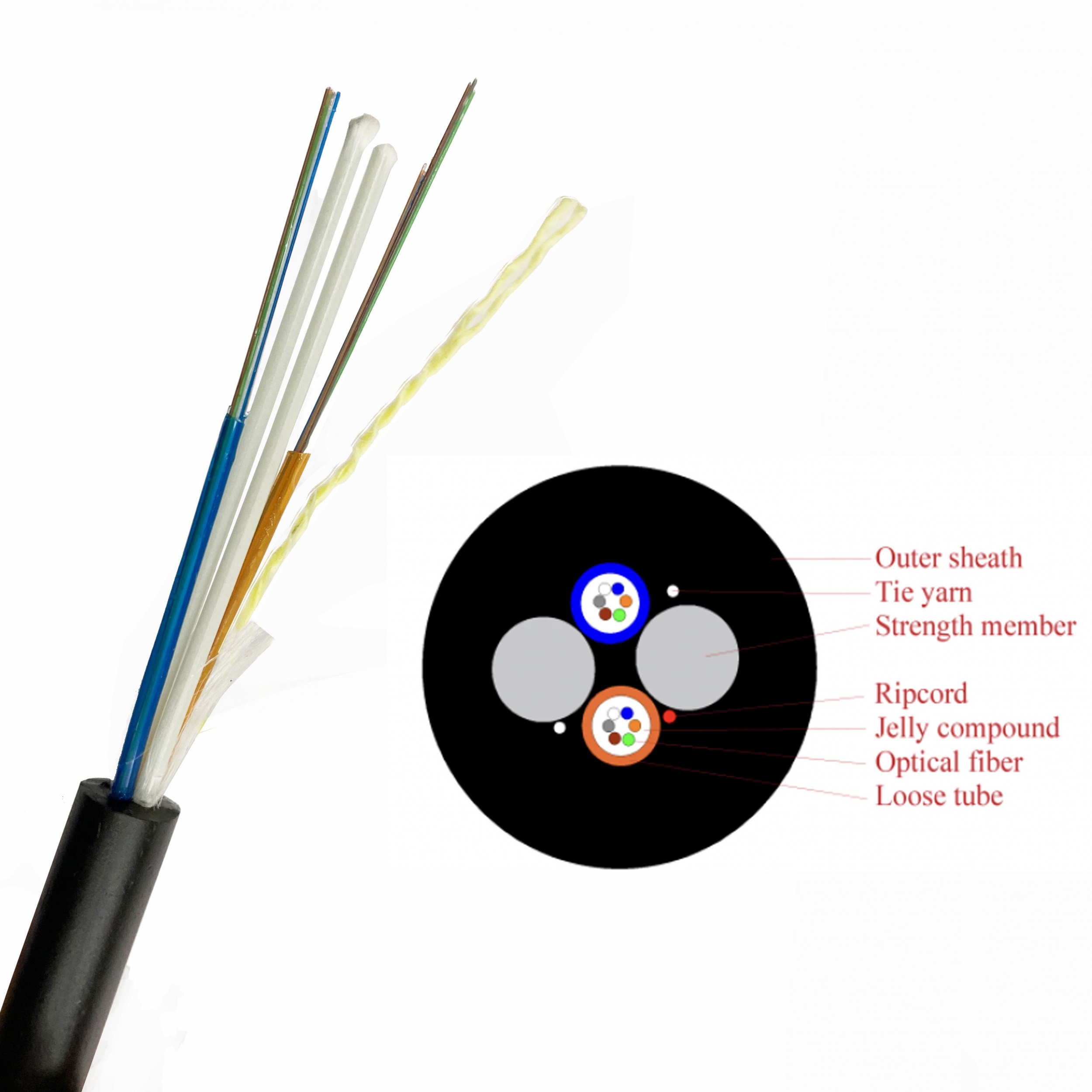

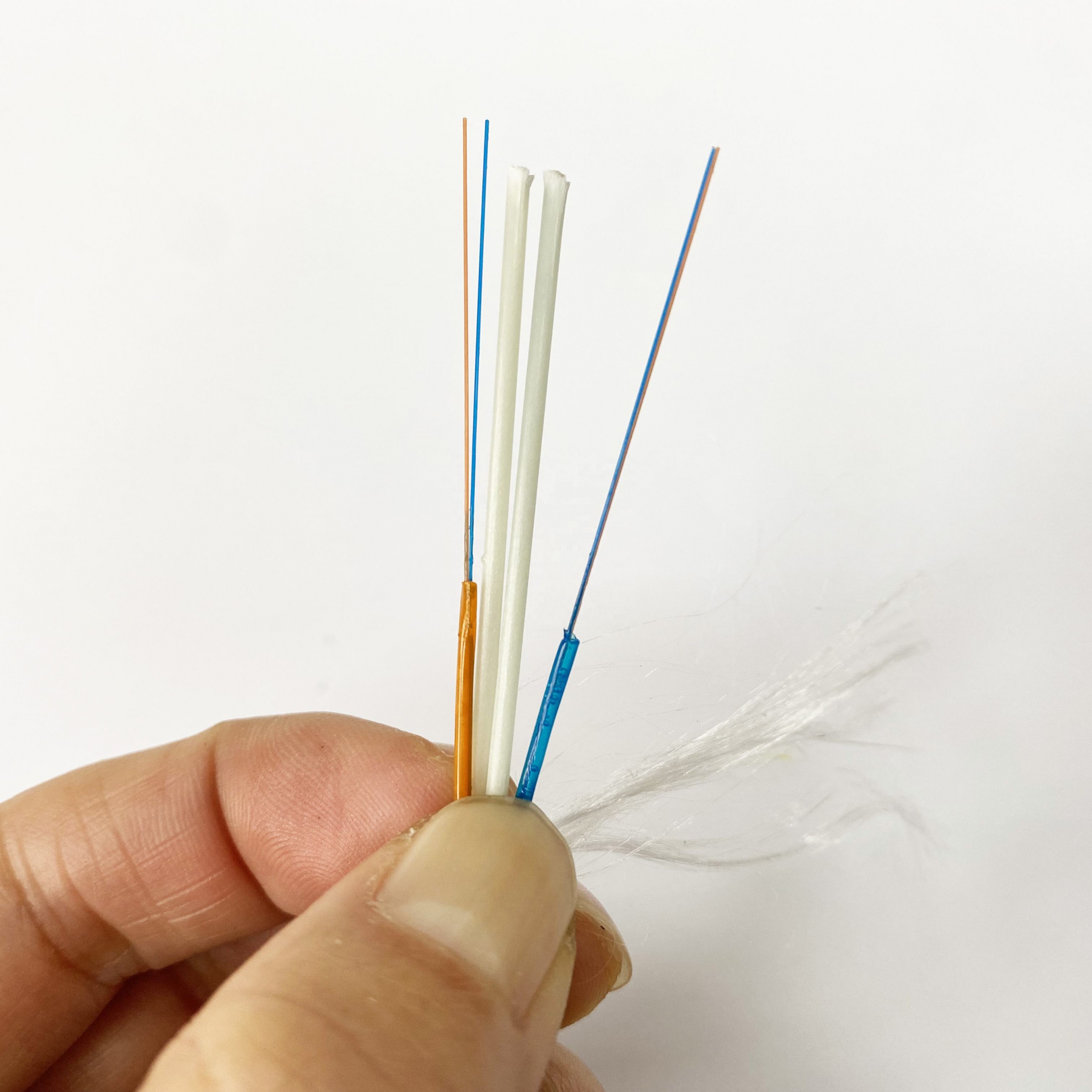

| Construction | stranded one loose tube with two FRPs | Fiber Type | G652D |
| Outer Jacket Material | HDPE | Jacket Color | Black |

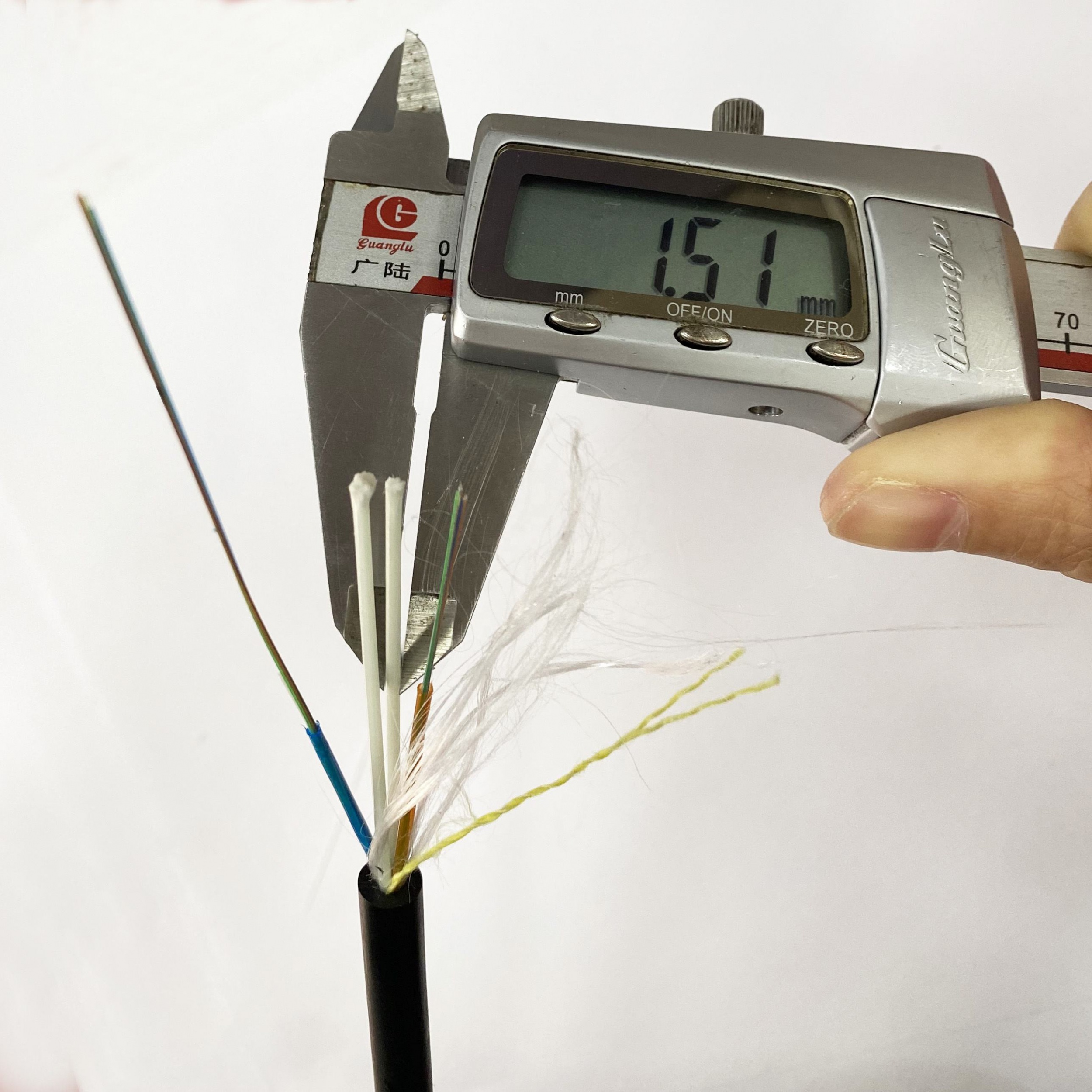

| Cable Diameter | 7.5mm±0.5mm | Span | 80m/100m/120m |
2-12cores Mini ADSS ASU80 ASU100 ASU120 Uni-Tube Fiber Optic Cable With two FRPs
Mini-ADSS are Small All-Dielectric self supporting cable and single jacket designed for aerial installation. The optical fiber cable(Mini-ADSS) design provides no supporting part or messenger wire required. Aixton provides for hardware part for installation with Mimi-ADSS cable supporting on the pole. The cable inside 3 multi-loose tube filled with a water resistant filling compound or design for waterblocked with water blocking material in side cable. The cable high tensile by aramid yarns and FRP strength member rod inside. Outer sheath made from HDPE. The cable approved by TISI 2166-2548 in Thailand standard Standard packing(wooden) 4,000M/Reel.
Features
Applications :
Adopted to outdoor areial self-supporting installation
Long-distance communication, local trunk line, CATV & computer networks system, Telecom or outside plant campus backbone applications
Ethernet LAN Network, CCTV, Network Camera, PLC
Mechanically, rugged, cable design for : Aerial, duct
Q1: What are the advantages of your price?
A1: We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
