ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound.
The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | ADSS |
| Minimum Order Quantity | 10KM |
| Packaging Details | 2/3/4KM Per Wooden Drum, |
| Delivery Time | 15-20days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000km every month |
| Place of Origin | CHINA |
|---|---|
| Brand Name | OptixFiber |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | ADSS |
| Minimum Order Quantity | 10KM |
| Packaging Details | 2/3/4KM Per Wooden Drum, |
| Delivery Time | 15-20days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000km every month |
| Item Name | ADSS Single Jacket Fiber Optic Cable | Fiber Count | 12,24,36,48,72,96,144,288 |
|---|---|---|---|
| Construction | Loose Tube | Outer Jacket Material | Single PE Jacket |
| Jacket Color | Black | Cable Diameter | depends on the fiber cores |
| Samples | Free | Package | Wooden Drum |
| Highlight | Outdoor Aerial Drop Cable,Single Mode Aerial Cable,ADSS cable | ||

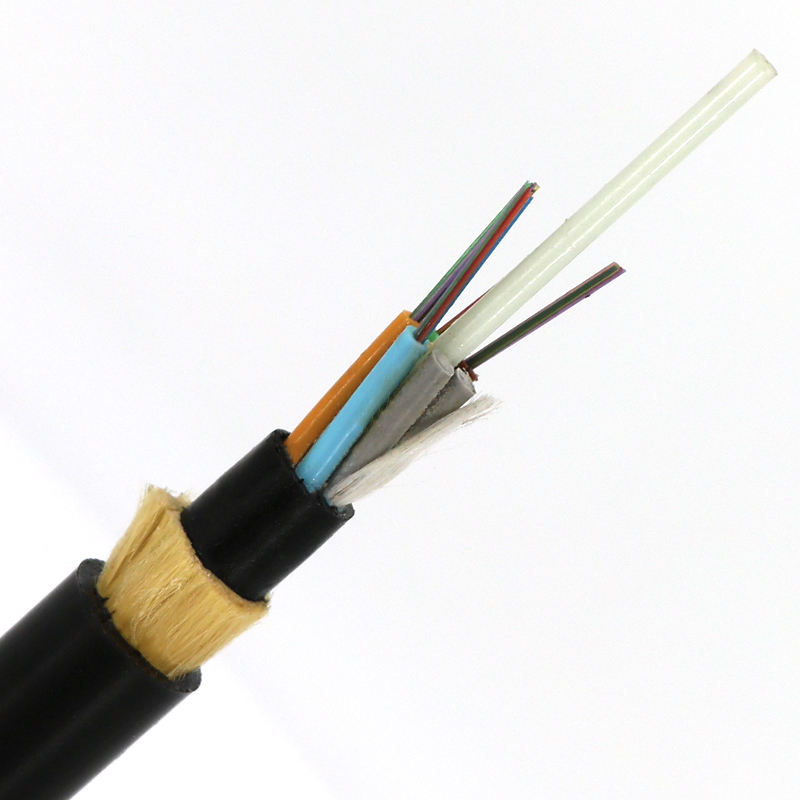

Outdoor Aerial 12 24 36 48 72 96 144 288 Cores Single Mode Large Span Dielectric ADSS Fiber Optic Cable

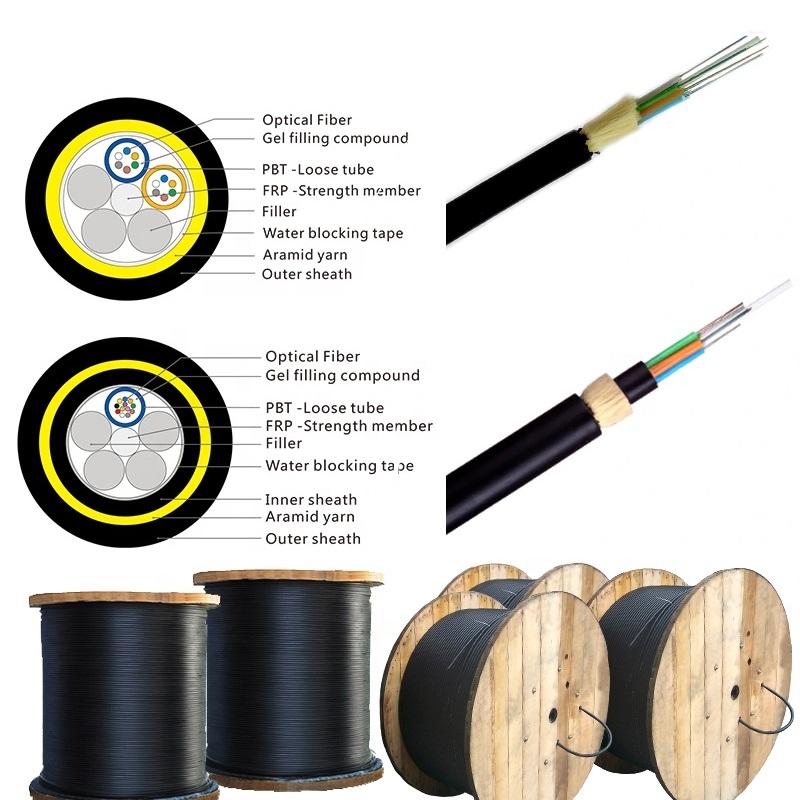

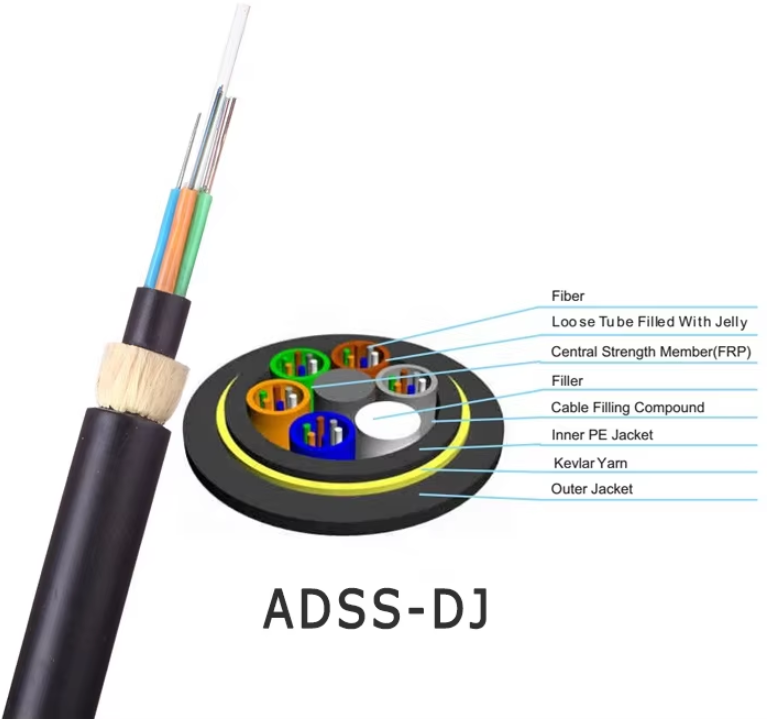

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound.
The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

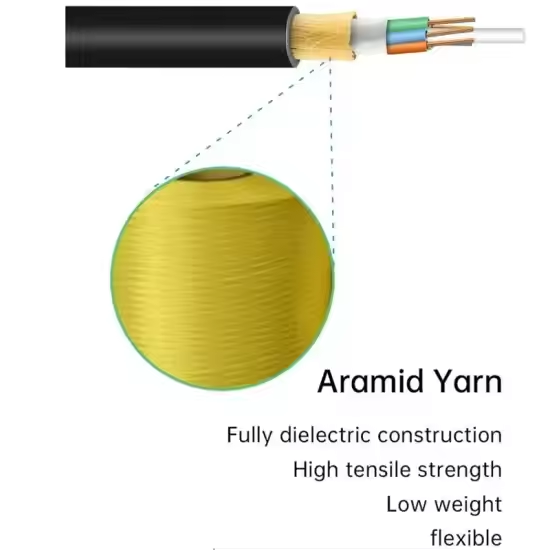

After the cable core is filled with filling compound. it is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.
Technical characteristics
1. Fiber count: 2 - 288
2. Low loss, low dispersion
3. Proper design and precise excess length control offer excellent mechanical and environmental properties to cable
4. Water-blocking cable gel is fully filled outside the strength member and inside the cable core, which ensures the cable's moisture proof and water barrier performance
Performance
1. Applicable to long distance, inter-exchange communication, CATV, computer network transmission system and more
2. Minimum bend radius: Static 10D, dynamic 20D
3. Operation temperatures: -40 - 70º C
Q1: What are the advantages of your price?
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting 'Enough Cores, Enough Meters, High Quality, High Performance'. Providing our customers with higher quality products and services. fibra óptica
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy our stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
